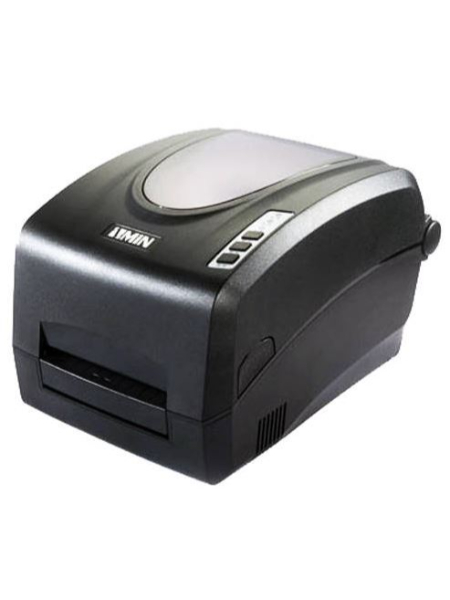

ZMIN X series barcode label printer

R4,500.00

Compare
Categories: ,

Loading...

Barcode:

Powerful Full, Convenient, Small-footprint Barcode Label Printer. X1’s resolution is 203DPI,X1i’s resolution is 300DPI.

The ZMIN X series barcode label printer will bring a new experience for you !

This printer delivers an affordable solution so that you can easy to use the variety size of ribbon and label. It support up to 300 miller ribbon and 5 inch label roll, all of this means fewer consumable changes. The print speed is reached to 6 inch/sec for 300DPI, so it provides quickly and efficiently printing, meet your requirements of maximizing production and minimizing wait time.

Meanwhile, excellent appearance make it more attractive.
Printing Method:
Direct thermal & Thermal transfer

Resolution:
203 DPI (8dots/mm)
Maximum print speed:
8 IPS (203.2mm/s)
 Maximum print width:
4.09″ (104mm)
Maximum print length:
157.5″ (4000mm)
Memory:
8 MB Flash ROM, 16 MB SDRAM
Media:
Roll-feed, die-cut, continuous, fan-fold, tags, tickets in plain paper or thermal paper
Width:4.5″ (114mm) max.,0.8″ (20mm) min.
Supply roll: OD 5″ (127mm) max., ID 1″ (25.4mm) min.

Thickness: 0.08~0.20mm (0.003″~0.0078″), including liner

Ribbon:
Wax, Wax/Resin, Resin
Ribbon roll: OD 2.75″ (70mm) max. with ID 1″ (25.4mm) core or ID 0.5″ (12.7mm) core
Max width: 110mm; Max length: 300M
Media sensor:
Adjustable reflective & Transmissive
Bar Code Types:
1D Barcode : Code 39, Code 93, Code 128, Codabar,
EAN-8/13/128, Interleave 2 of 5, UCC-128,
UPC A/E 2 and 5 add-on, etc.
2D Barcode : Data Matrix, MaxiCode, PDF417,QR, etc.
Interfaces:
RS-232 serial, USB
Power rating:
24 VDC, 2.5 A
Weight:
2.62KGS
Dimensions:
W208 x D310 x H195 mm
Operation environment:
Temperature: 32° F ~ +104° F (0° C ~ 40° C)

Relative humidity: 5% – 85% non condensing

Storage environment:
Temperature: -40° F ~ +140° F (-40° C ~ 60° C)

Relative humidity: 5% – 85% non condensing

Optional items:
Peeler kit, Internal 100/10 M Ethernet Interface card
