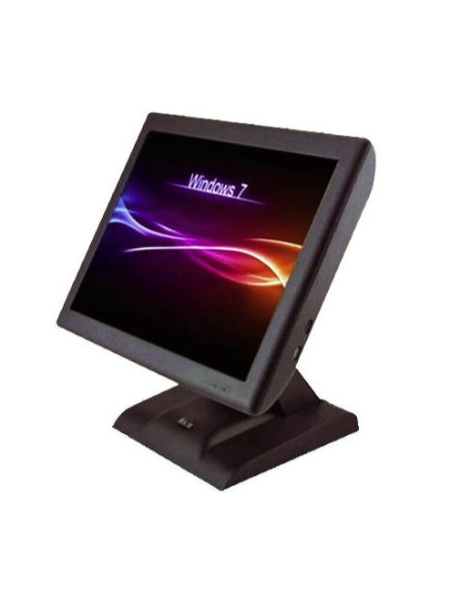

LV-5800 is High efficient touch screen. Using top quality industrial motherboard. Excellent personalized design adapt to any environment. LV-5800 Modular design & convenient maintenance.
ADVANTAGES:
– High efficient touch screen seek .
– Using top quality industrial motherboard.
– 15-inch TFT LCD Monitor, 1024 x 768,32bit colour.
– Five line resistance touch screen, the click life can reach 3.5 million times.
– Excellent personalized design adapt to any environment.
– Modular design & convenient maintenance.
LV-5800:
MAIN BOARD (ATOM):
Intel Atom-525
Intel Atom-525
MAIN BOARD (CELERON):
Intel Celeron-J1900
Intel Celeron-J1900
PROCESSOR:
ATOM: 1.8 Ghz
CELERON: 2.0 Ghz
MEMORY:
ATOM: 2 GB
CELERON: 4 GB
GRAPHICAL DISPLAY:
Integrated Intel GMA3950, Support DirectX9.0
Integrated Intel GMA3950, Support DirectX9.0
OUTER I/O INTERFACE:
– RJ-45 LAN Port
– USB 2.0 x 4
– Serial Port x 1
– DC Power Port x 1
DISPLAY:
VFD 2 lines customer display
VIDEO MEMORY:
Max Support 224MB Dynamic Video Memory
HDD:
500 GB
500 GB
LCD:
15″ TFT LCD
15″ TFT LCD
BRIGHTNESS:
250cd/m2
250cd/m2
RESOLUTION:
1024×768 (max)
1024×768 (max)
TOUCH SCREEN:
Top quality five line resistance touch screen
Top quality five line resistance touch screen
VISIBLE ANGLE:
Horizontal: 140, Vertical: 130
Horizontal: 140, Vertical: 130
OPERATION TEMPERATURE:
0°C to 40°C
0°C to 40°C
STORAGE TEMPERATURE:
-20°C to 40°C
-20°C to 40°C
PACKAGING SIZE:
418 x 418 x 317 cm
418 x 418 x 317 cm
NET WEIGHT:
7.8 KG
7.8 KG
GROSS WEIGHT:
9 KG
9 KG
POWER:
DC 12V Outer Adapter Input
DC 12V Outer Adapter Input
