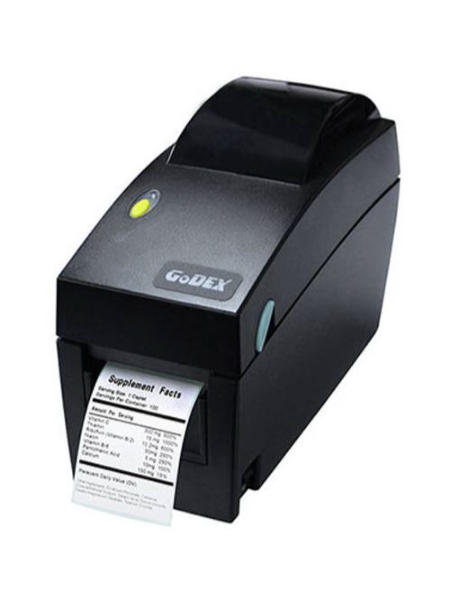

Simple, compact and reliable barcode printer
Simple, very compact and reliable barcode printer. Perfect for printing retail labels and tags, hospital and recreation wrist bands, plus other small, temporary labelling applications.
– Simple and economical 2.5” direct thermal printer
– Small space-saving design with wall mounted feature
– Standard USB 2.0, serial port and Ethernet connections
– Auto language emulations: EZPL, GEPL and GZPL
– Free GoLabel / QLabel software with database function makes it easy to design
– Options include: label dispenser and cutter
Printing Method:
Direct Thermal
Direct Thermal
Resolution:
203 dpi (8 dots/mm)
203 dpi (8 dots/mm)
Print Speed:
4 IPS (102 mm/s)
4 IPS (102 mm/s)
Print Width:
2.12” (54 mm)
2.12” (54 mm)
Print Length:
Min. 0.16” (4 mm)**; Max. 68” (1727 mm)
Min. 0.16” (4 mm)**; Max. 68” (1727 mm)
Processor:
32 Bit RISC CPU
32 Bit RISC CPU
Memory:
4MB Flash (2MB for user storage) / 16MB SDRAM
4MB Flash (2MB for user storage) / 16MB SDRAM
Sensor Type:
Fixed transmissive sensor, central aligned, adjustable reflective sensor
Media:
Types: Continuous form, gap labels, black mark sensing, and punched hole;
label length set by auto sensing or programming
label length set by auto sensing or programming
Width: 0.6” (15 mm) Min. – 2.36” (60 mm) Max.
Thickness: 0.0024” (0.06 mm) Min. – 0.008” (0.20 mm) Max.
Label roll diameter: Max. 5” (127 mm)
Core diameter: 1”, 1.5” (25.4 mm, 38.1 mm)
Printer Language:
EZPL, GEPL, GZPL auto switch
EZPL, GEPL, GZPL auto switch
Software Label design software:
QLabel-IV, GoLabel (for EZPL only)
Driver:
Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Windows 10
DLL: Win CE , .NET , Windows Mobile, Android
Download Fonts:
Bitmap fonts: 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts: 16×16, 24×24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001)90∘,180∘,270∘, rotatable and 8 times expandable in horizontal and vertical directions
TTF fonts: 90°, 180°, 270° rotatable
Barcodes:
1-D Bar codes:
Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock
2-D Bar codes:
PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417,
Micro QR code and Aztec code
Micro QR code and Aztec code
Code Pages:
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode UTF8、UTF16BE、UTF16LE
Graphics:
Resident graphic file types are BMP and PCX, other graphic formats
are downloadable from the software
are downloadable from the software
Interfaces:
USB port
Serial port: RS-232 (DB-9)
Ethernet port
Control Panel:
One Tri-color LED: Power (Green, Orange and Red)
Function Key: FEED
Real Time Clock: Standard
Power:
Auto Switching 100-240VAC, 50-60Hz
Auto Switching 100-240VAC, 50-60Hz
Environment:
Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C)
Humidity:
Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.
Agency Approvals:
CE(EMC), FCC Class A, CB, CCC
CE(EMC), FCC Class A, CB, CCC
Dimension:
Length: 8.58” (218 mm)
Height: 6.77” (172 mm)
Width: 3.94” (100 mm)
Weight: 2.65 lbs (1.2Kg) ,excluding consumables
Options:
Cutter Module
Label Dispenser
External label roll holder for 10” (250 mm) O.D. label rolls
External label rewinder
Note:
* Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners.
** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability.
