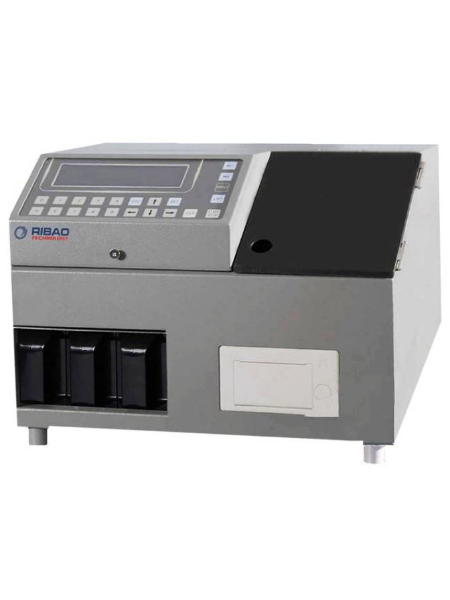

The CS-211S is a high quality mixed coin counting machine that uses the rail principle. It detects and sorts out counterfeit, foreign coins/tokens etc.
Customized software has already been developed for 40 currencies, which has been approved by the ECB
Compact Design
The CS-211S is very compact and doesn’t take up a lot of space.
Alloy sensor
The latest alloy sensor technology ensures the highest counting accuracy. It rejects foreign coins, counterfeit coins and tokens etc.
Quiet Operation
Special noise reduction technology creates a more comfortable operation environment.
Easy Maintenance
The tilt sorting rail allows for easy cleaning and maintenance.
Software Updates
Software updates can be easily downloaded through the USB port. If there are new coins issued, the customer only needs to “read” the coins with our machine and send us the parameters. We can use these parameters to update the software, then the users can download the software for the machine through the USB port.
Various options
The machine can be connected to a computer, external printer and coin tubing sets.
Hopper capacity:
Approx. 600 coins
Display:
LCD Display (24064)
Suitable coin size:
Diameter:14~33mm
Thickness: 1.o~4.0mm
Speed:
Approx. 600coins/min
Connectivity:
PC port: RS232
LAN port: RJ45
External display port: PS2
Software upgrading: USB
Available currency software:
More than 33 kinds of software available
Sensor:
Alloy sensor
Counting modes:
Mixed counting mode
Single denomination counting mode
Batch counting
Power supply:
AC 120V ± 10%, 60Hz
or AC 220V ± 10%, 50Hz
Power consumption:
60W
Machine Dimension(LxWxH):
365*280*294mm
Net Weight:
13kg
Transportation Packing:
1 unit/carton
Carton Dimension:
490*410*500mm
Gross Weight/carton:
15kg
